Linear Axis

Linear Axis Specification

Accuracy
0.2 mm

Machine Type
Linear

Surface Treatment
Anodize

Automation Grade
A

Technology
Automation Linear

Control System
No

Type
Linear

Size
110

Material
Aluminium

Height
8 Centimeter (cm)

Product Type
Linear

Weight
11 Kilograms (kg)

Function
Linear Motion

Color
Silver

Width
11 Centimeter (cm)

Application
Automation

Length
11 Centimeter (cm)

Linear Axis Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Others

Supply Ability
1 Number Per Week

Delivery Time
10 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Packaging Details
Box

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
No

About Linear Axis

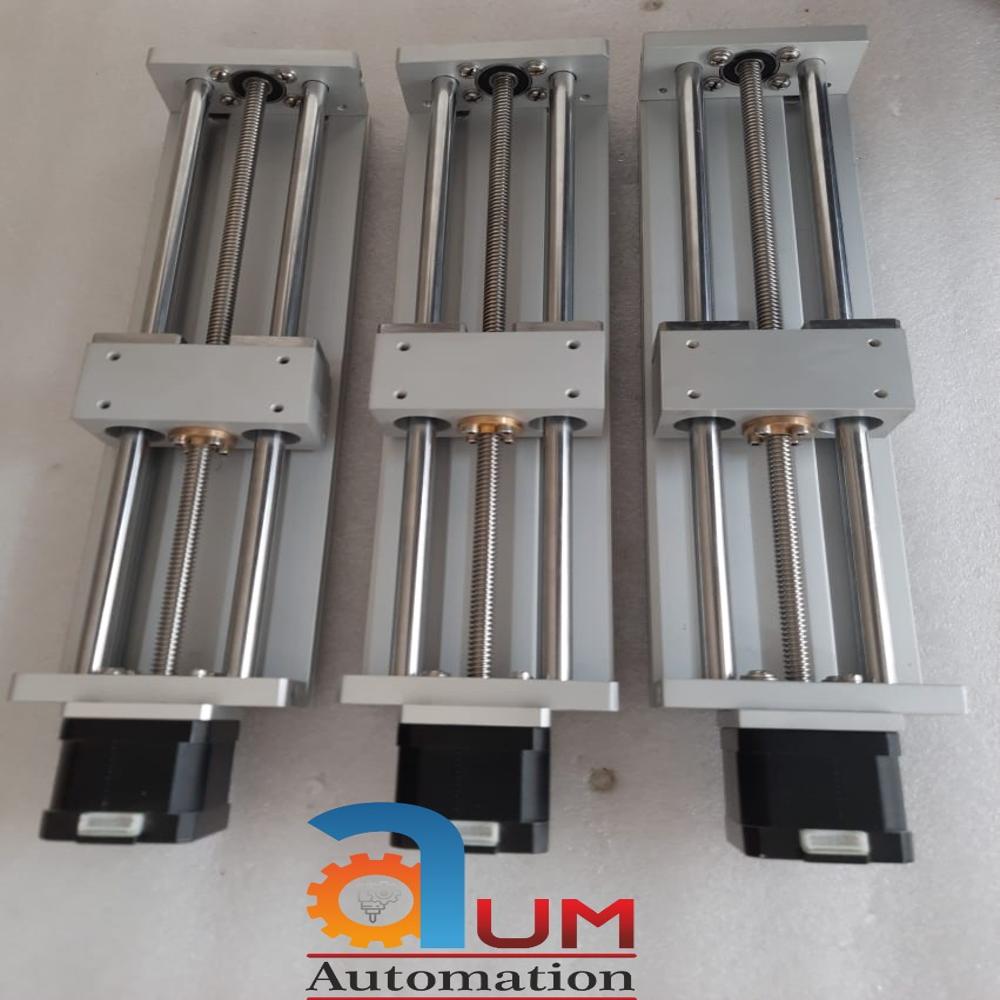

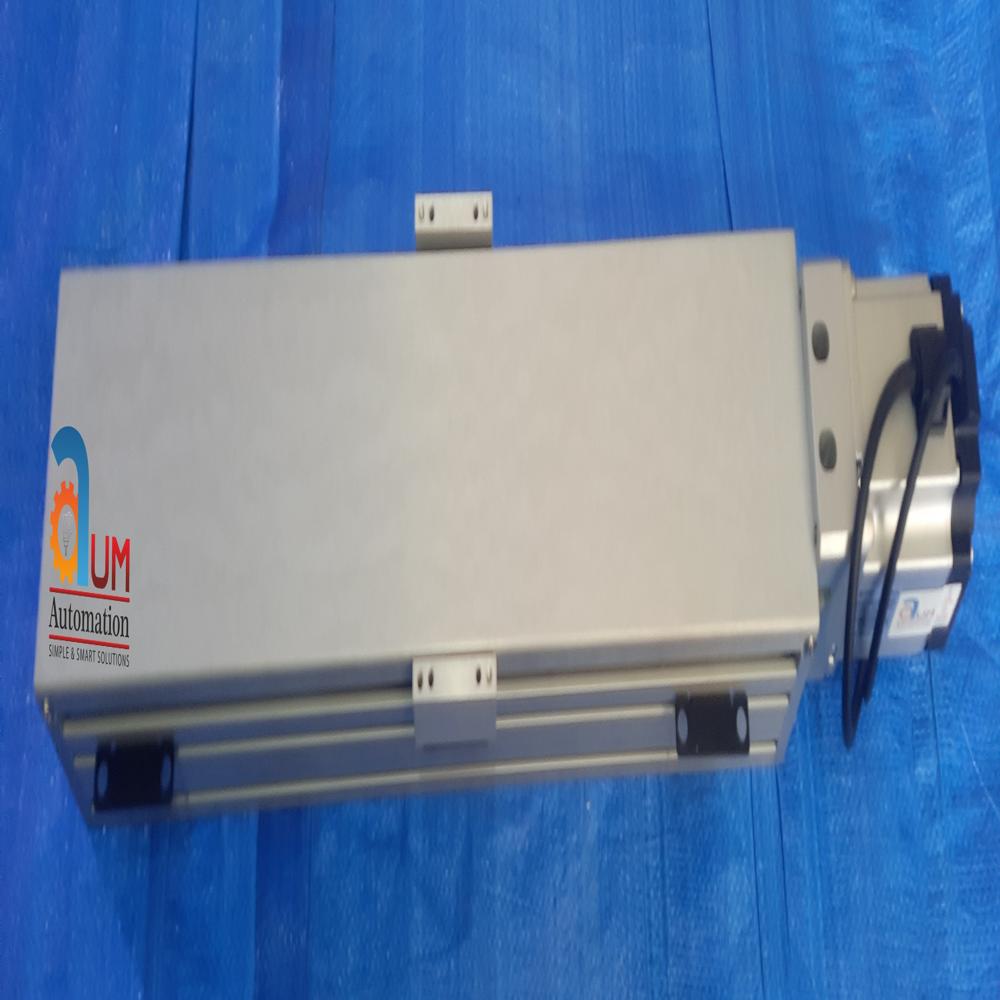

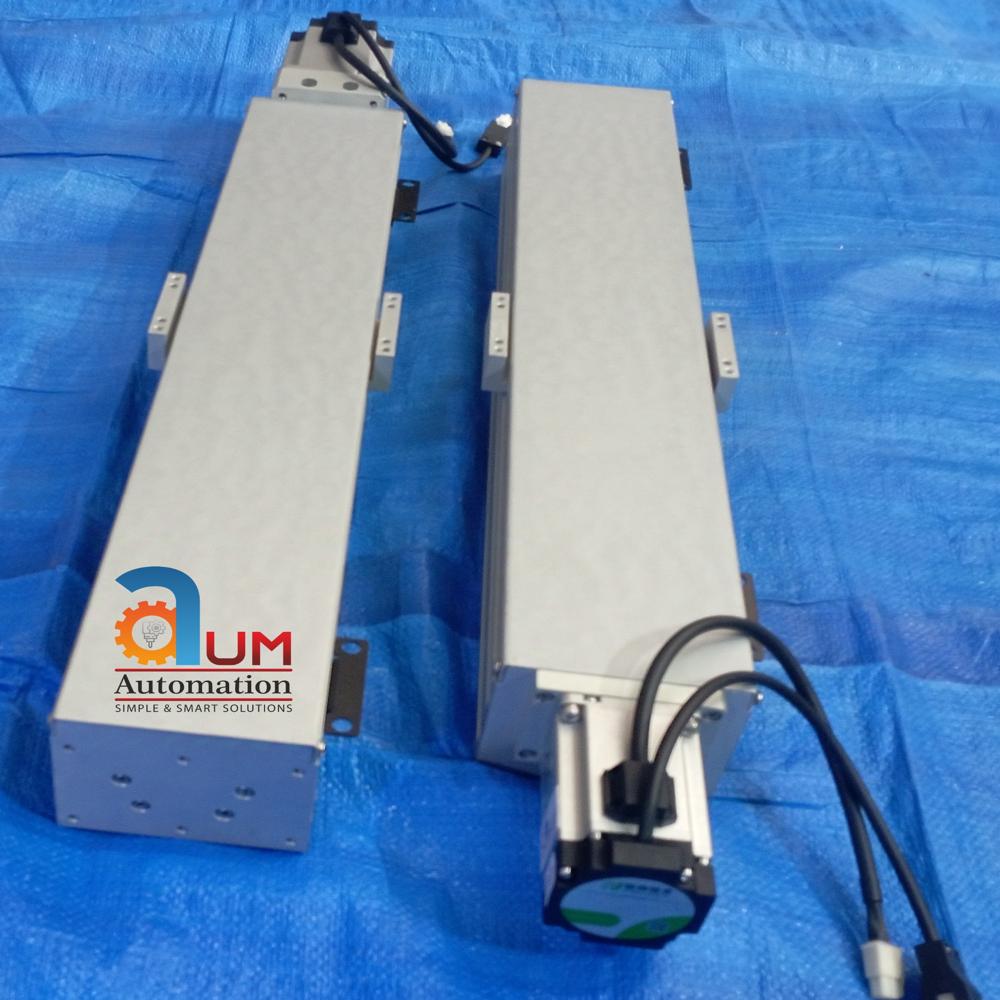

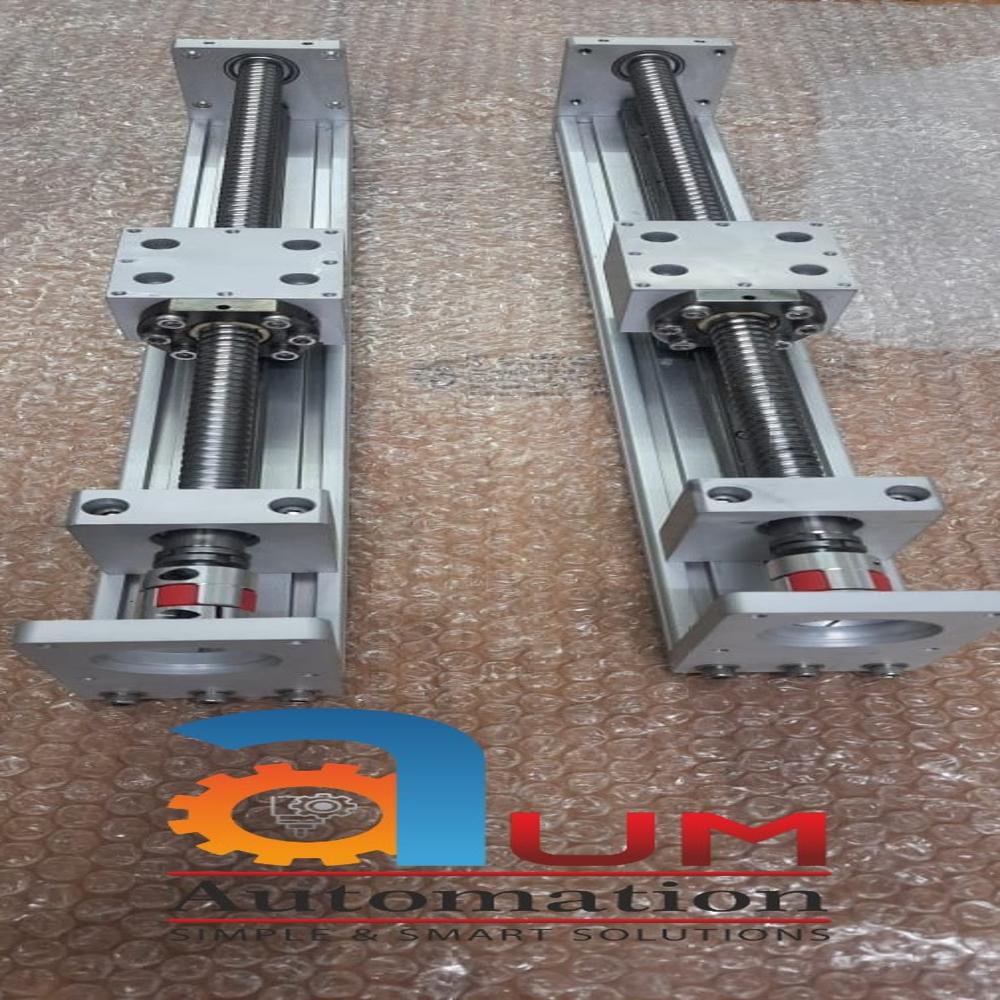

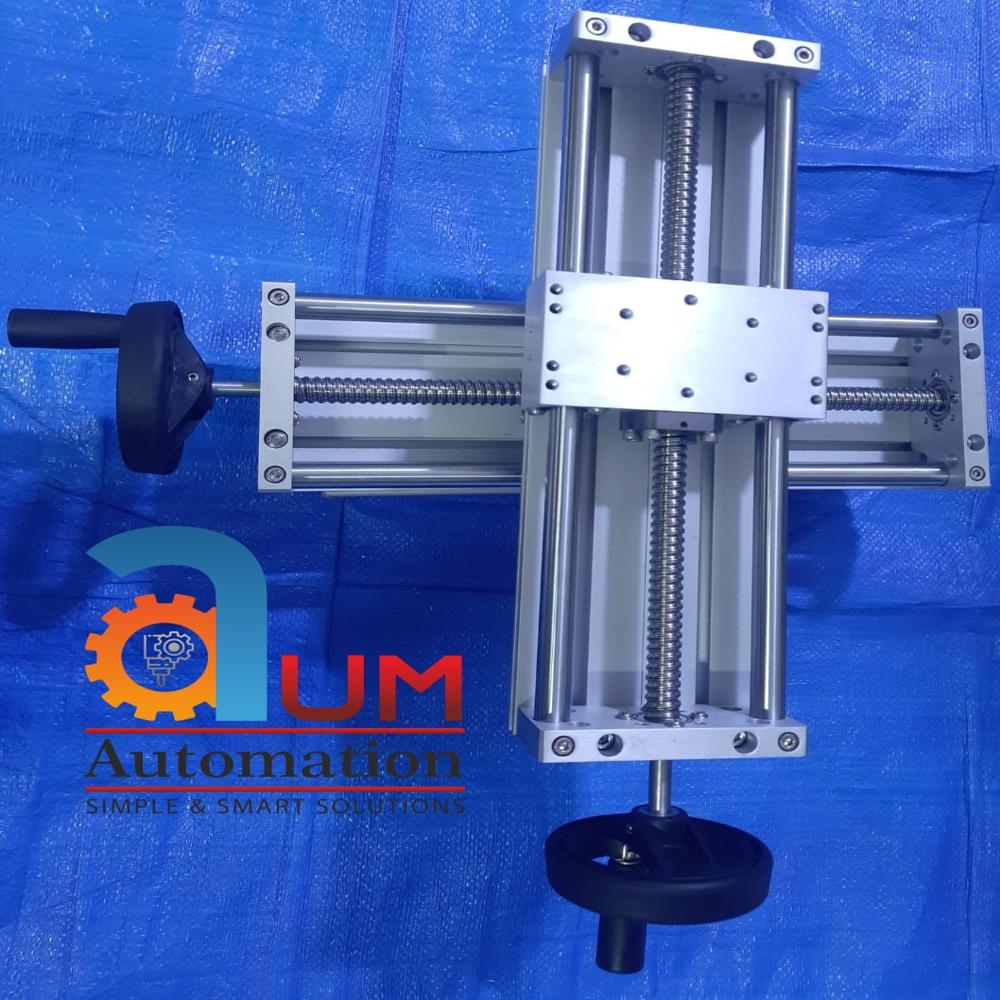

A linear axis is a mechanical precision motion device that provides straight-line, single-axis movement using components like guide rails, bearings, and a drive mechanism (belt, ball screw, or motor). Integral to automation, CNC machines, and robotics, they translate rotary or electrical input into smooth linear displacement.

A linear axis is a precision mechanical device designed to provide controlled, straight-line movement in automation, robotics, and CNC systems. It converts rotational motor motion into linear displacement using components like guide rails, carriages, and drive mechanisms (belt, ball screw, or linear motor) to enable accurate, repeatable positioning.

High-Precision Linear Motion for Automation

Designed with a focus on accuracy, this linear axis achieves a fine positional tolerance of 0.2 mm, making it suitable for tasks that require repeatable, smooth movement. The robust anodized aluminium construction ensures a long operational life even in demanding industrial settings.

Compact and Durable Design

Measuring 8 cm in height, 11 cm in width and length, and weighing only 11 kg, this unit is engineered for easy integration into automation systems with limited installation space. Its anodized finish enhances resistance to wear and corrosion, ensuring consistent performance over time.

FAQ's of Linear Axis:

Q: How is the linear axis typically used in automation systems?

A: The linear axis is commonly employed for precise positioning or transportation of components within automated machinery, robotic arms, or assembly lines. Its accurate linear motion supports various industrial automation processes.

Q: What benefits does the anodized aluminium construction provide?

A: Anodized aluminium offers superior corrosion resistance, enhanced surface durability, and a sleek silver appearance, all of which contribute to longer product life and minimal maintenance requirements.

Q: When should I choose this Linear Axis for my automation project?

A: This Linear Axis is a great choice when your application requires compact dimensions, high accuracy (0.2 mm), and reliable linear motion in industrial automation environments where space and weight are important considerations.

Q: Where can I source this product in India?

A: You can obtain this Linear Axis from reputable manufacturers, suppliers, and traders specializing in automation components throughout India. Many offer customization and support for integration in automation systems.

Q: What is the process for installing the linear axis?

A: Installation typically involves securely mounting the linear axis onto a machine frame, aligning it accurately for intended movement, and ensuring proper mechanical interfaces. Since there's no integrated control system, it must be paired with appropriate actuators and controls.

Q: How does the accuracy specification (0.2 mm) benefit my automation application?

A: The 0.2 mm accuracy means you can achieve precise positioning and repeatable motion, critical for applications such as component placement, inspection systems, or delicate assembly operations.
