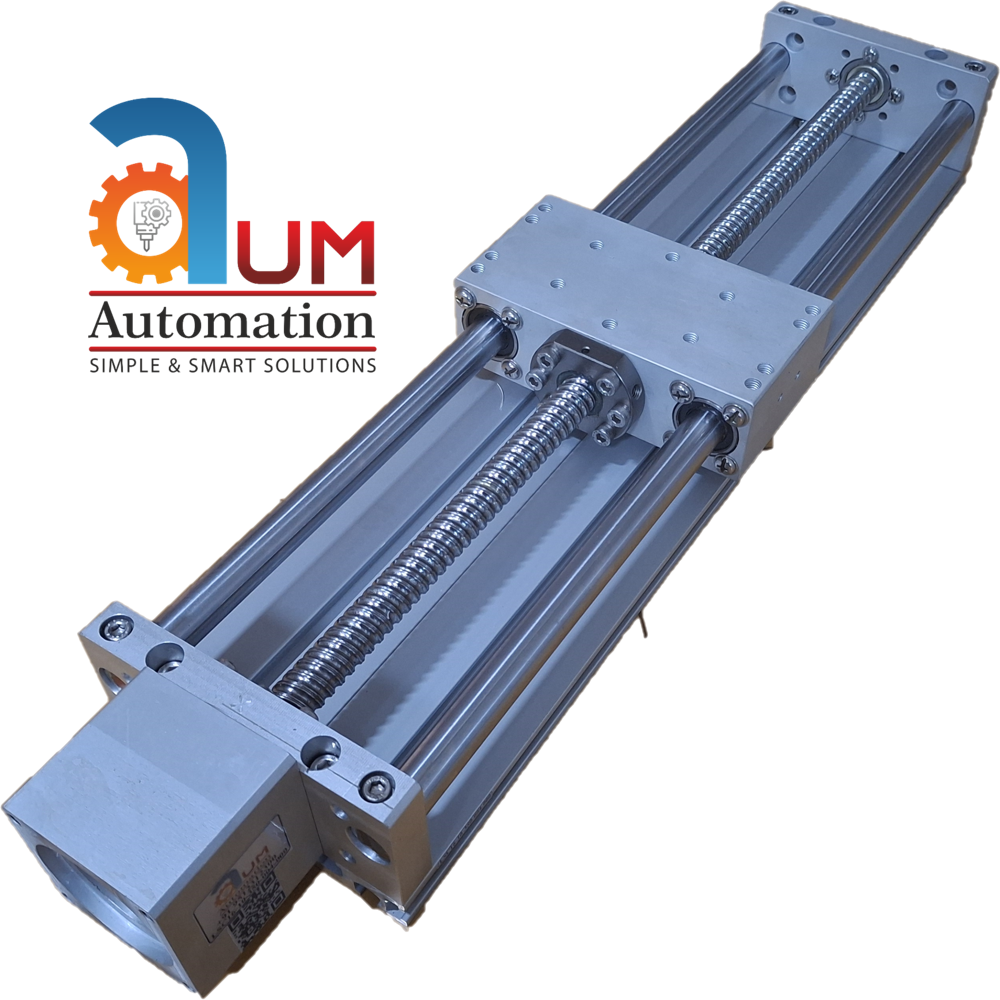

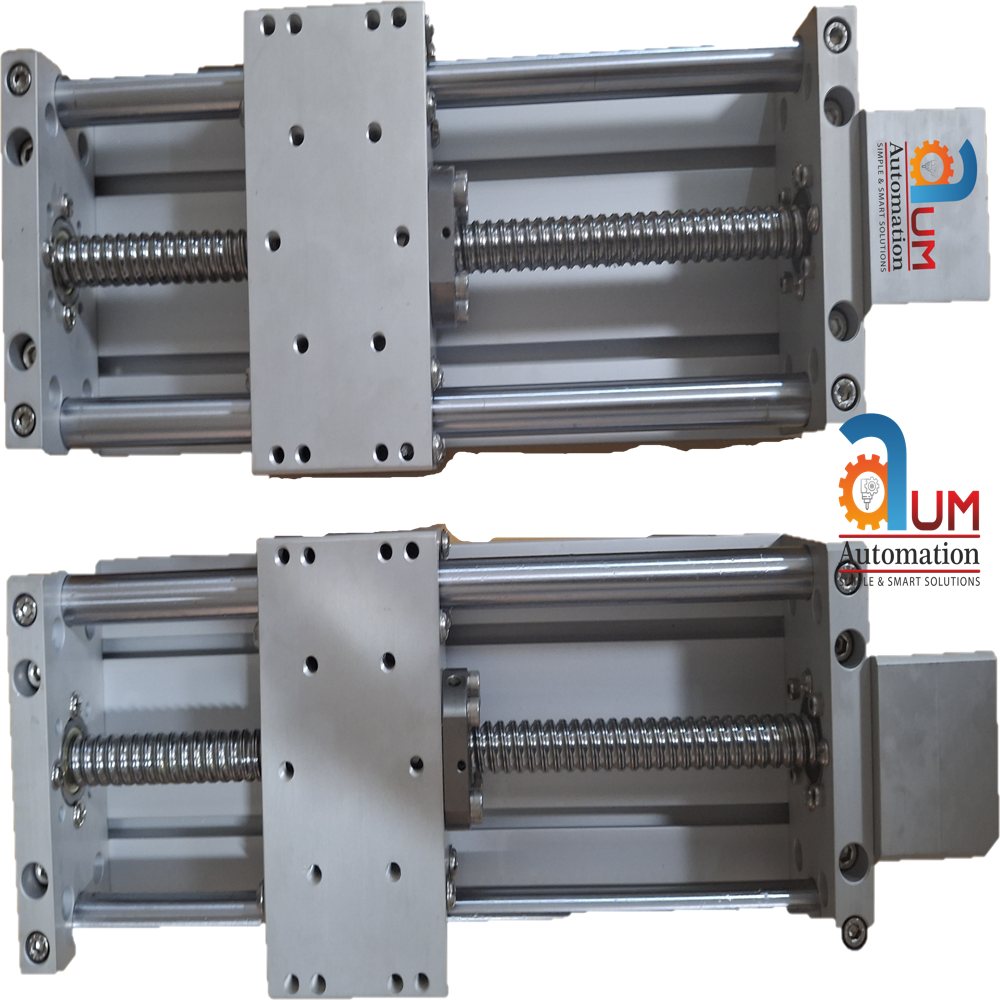

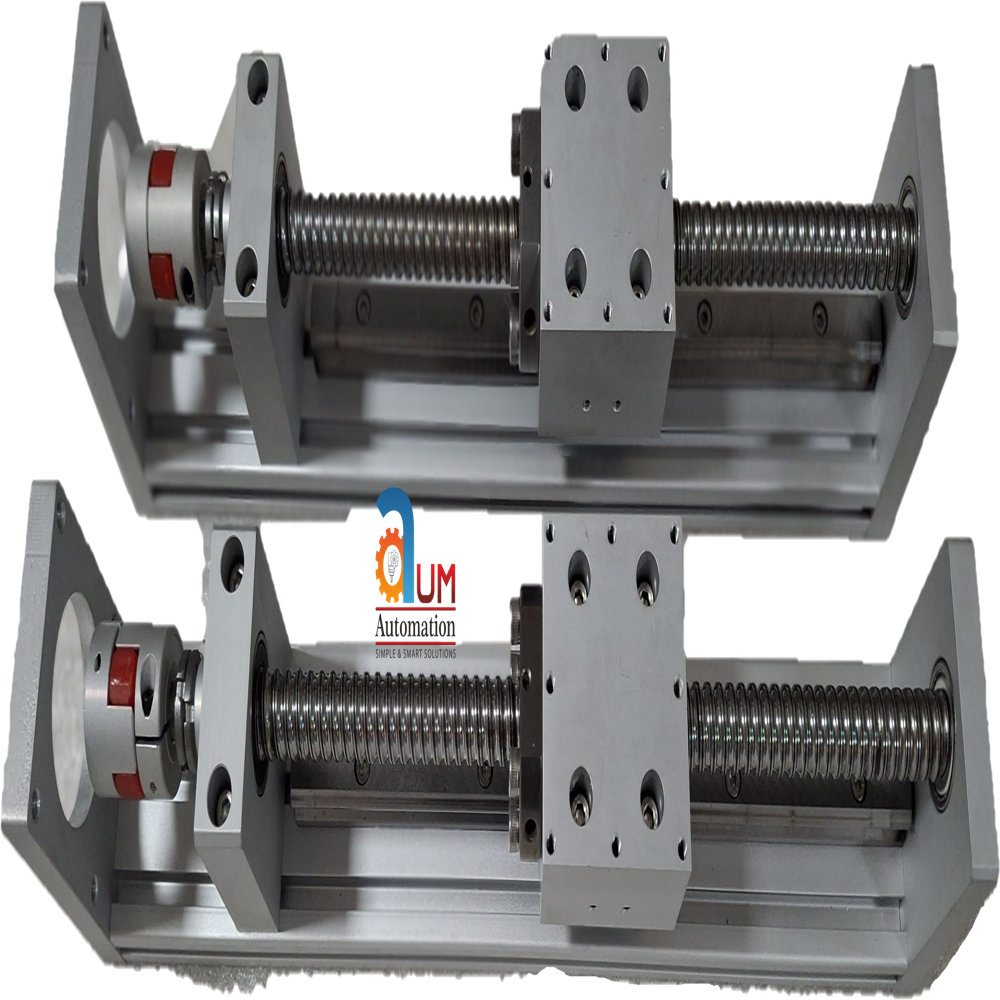

Linear Slide Unit

Linear Slide Unit Specification

Machine Type
Sliding

Accuracy
0.2 mm

Technology
Linear

Surface Treatment
Anodize

Type
Linear

Material
Aluminium

Size
110

Height
8 Centimeter (cm)

Weight
11 Kilograms (kg)

Function
Motion

Color
Silver

Width
11 Centimeter (cm)

Length
11 Centimeter (cm)

Application
Automation

Linear Slide Unit Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Others

Supply Ability
1 Number Per Week

Delivery Time
10 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Packaging Details
Box

Main Export Market(s)
Asia

Main Domestic Market
All India

About Linear Slide Unit

A linear slide unit is a precision motion component consisting of a carriage (block) moving along a guide rail using rolling elements (balls or rollers) to provide smooth, low-friction, and accurate straight-line movement. Often made from stainless steel for corrosion resistance, these compact, high-stiffness devices are ideal for automation, robotics, and measuring instruments requiring high repeatability.

Engineered for Precision Automation

This Linear Slide Unit is meticulously designed for automation systems that require accurate linear motion. With its linear technology and 0.2 mm accuracy, it ensures consistent performance in demanding industrial environments. The anodized aluminium material makes it sturdy and resistant to corrosion, adding to its operational reliability.

Durable Anodized Aluminium Construction

Crafted from high-quality aluminium and finished with an anodized surface treatment, the slide unit stands up to rigorous use. Its material choice and finish help to prevent wear and tear, ensuring a long operational lifespan for automated systems.

Versatile Application and Integration

Measuring 11 cm by 11 cm and 8 cm in height, this compact sliding unit fits easily into various automation assemblies. Its motion functionality is suitable for a broad range of state-of-the-art industrial automation applications, including material handling and precise positioning tasks.

FAQ's of Linear Slide Unit:

Q: How is the Linear Slide Unit used in automation processes?

A: The unit is integrated into automation machinery where precise, smooth, and controlled linear motion is required. It facilitates the movement of components or tools along a set path, improving accuracy and process efficiency.

Q: What benefits does the anodized aluminium construction provide?

A: Anodized aluminium enhances the slide unit's durability, making it resistant to corrosion and wear. This prolongs the service life of the unit in industrial environments, ensuring reliable performance over time.

Q: When should I consider using a linear slide unit in my application?

A: A linear slide unit is ideal when your automation task demands accurate, repeatable linear movement, such as material transfer, positioning, or part handling within 0.2 mm accuracy.

Q: Where can the Linear Slide Unit be installed within a machine?

A: The unit can be mounted wherever precise sliding movement is needed, such as on assembly lines, CNC machines, or robotic systems. Its compact size allows for flexible installation in both horizontal and vertical orientations.

Q: What is the process for integrating the Linear Slide Unit into an automation system?

A: Generally, the unit is fixed onto the base structure of the machine using standard mounting interfaces. After securing, it is connected to the actuating mechanism (manual or motorized) and aligned to ensure smooth operation.

Q: What is the main function of this Linear Slide Unit?

A: Its primary function is to provide controlled and precise linear motion, contributing to the efficiency, reliability, and accuracy of automation and sliding machine operations.

Q: What benefits does using this slide unit bring to automated systems?

A: It delivers enhanced accuracy, operational consistency, and reduced downtime due to its robust anodized finish and precision engineering, boosting overall productivity for automation applications.
